API 7K TQ340 Casing/ hydraulic Power Tong sucker rod power tubing tong with torque gauge

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $14000.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
DYQX
Model Number:
TQ340
Type:
power tongs
Machine Type:
Drilling Tool
Certification:
API
Material:
Carbon Steel
Processing Type:
Casting
Use:
Well Drilling
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Exporting packaging
Port
Shanghai port



Product Description

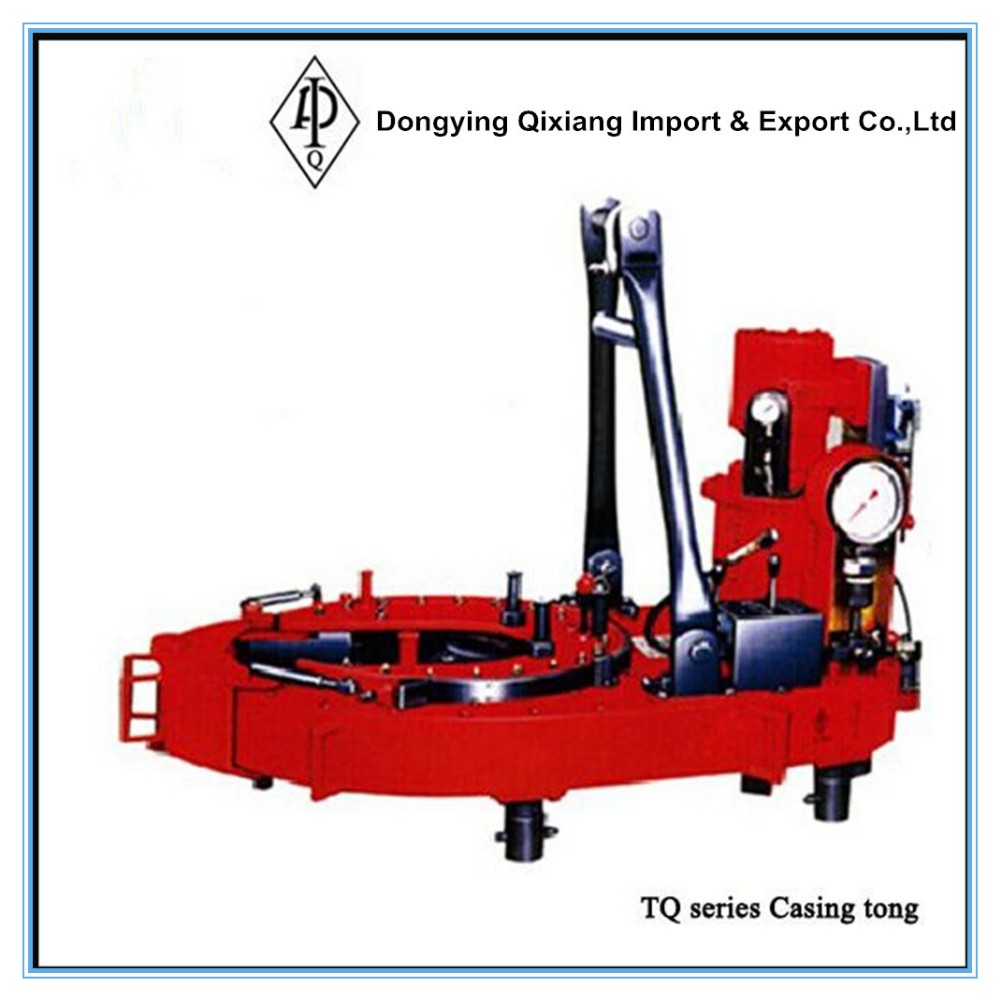

                                             API 7K TQ340 casing power tong



1.TQ series of casing tongs are widely used for making-up or breaking-out pipes or casing in diameters of 4~133/8.

2.Tong head is designed as open and can freely clamp and escape from thecasing.



3.TQ Casing Tongs are safe, reliable, and easy to handle with high mobility.



4.This series of casing tongs can be connected with computer controlling units as ideal well mechanical tools for surface operations in oil fields.

5.The tongs are designed and manufactured according to API Spec 7K Specification for Drilling Equipment.

Model

TQ178-16

TQ340-20Y

TQ340-35

TQ178-16Y

TQ340-35Y

TQ508-70Y

Size range

mm

101.6-178

101.6-340

139.7-340

101.6-178

101.6-340

245-508

in

4-7

4-13 3/8

51/2-13 3/8

4-7

4-13 3/8

9 5/8-20

Hydraulic system

Max. pressure

MPa

18

16

18

18

18

20

psi

2610

2320

2610

2610

2610

2900

Hydraulic system rated flow

L/min

114

114

114

114

114

200

gpm

30.1

30.1

30.1

30.1

30.1

52.8

Max. torque

Hi gear

kN.m

2.4-3

3.7

2.5-3

2.4-3

4.0-5.0

8.4-10.7

ft.lbf

1770-2200

2730

1844-2200

1770-2200

2950-3680

6195-7890

Mid gear

kN.m





6.0-7.5







ft.lbf





4420-5530







Low gear

kN.m

16

20

35

15-18

27-30

48.9-70

ft.lbf

11800

14750

25800

11060-13280

19900-22120

36065-51630

RPM

Hi gear

rpm

54-79

50-80

60-86

54-79

80-98



Mid gear

rpm





21-30







Low gear

rpm

9-13.1

6-14

2.6-5.3

8.5-12

12-16



Overall dimensions

mm

1540*760*740

1520*850*670

1540*900*860

1500*760*680

1560*900*850

2080*1280*760

in

61*30*29

60*34*26

61*36*34

59*30*27

61*35*33.5

82*50*30

Weight

kg

580

560

780

570

780

1550

lb

1280

1234

1720

1250

1720

3410
