Quick Details

  • Condition: New
  • Application: Solids Control
  • Production Capacity: 80V/50HZ, 460V/60HZ
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: DYQX
  • Model Number: DYQX
  • Voltage: 380V
  • Power(W): 2*1.5Kw
  • Dimension(L*W*H): 2400X1640X1450mm
  • Weight: 1650-2120
  • Features: Low Cost
  • Certification: API
  • Warranty: 18month
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details exporting packing
Delivery Time within 5 days
Product Description

 Oilfield Drill rig parts shale shaker,drilling mud shale shaker



Brief introduction about  shale shaker



The shale shakers were solely designed and manufactured by our company but with the advantages of same international well-known products,containing more than one patents

The shale shakers being provided with high vibration intensity , adjustable-pitch ,compact, reliable ,behavior and cost effective ,is known as a competitive product in the international market.



1. Usage and Applicability



Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.

The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments.

the Shale Shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.



2. Structure and Operating Principle



The shale shaker is composed of feeding tank,base,screening box,and vibrating motor etc.six isolation springs sustain the screening box on the base.three same or different mesh screens are installed on the screening box working surface.

Having absorbed the latest achievements in screening machine at home and abroad and integrated the strong points of circle and rectilinear vibration, the shale shaker greatly raises the speed of carrying drill cuttings and boost through–screen quantity of drilling liquid, thus avoiding pasting on the screen. The shale shaker takes double explosion-proof vibration motors as vibrating source, and forms rectilinear movement by the action of reversal rotation vibration motors. It is especially applicable in the working conditions with stratigraphic fluctuation. Its advantages become more apparent as drilling liquid is of much higher viscosity.



3.Main Technical Parameters



Model

ZS280-3P

ZS240-3P

ZS220-3P

ZS180-2P

Motor power,kW

2×2.2

2×2.2

2×2.2

2×1.3

Ex degree

dⅡBT4

dⅡBT4

dⅡBT4

dⅡBT4

Protection degree

IP66

IP66

IP66

IP66

Screen area,m2

3×0.833×1.15

3×0.7×1.15

3×0.7×1.05

2×0.833×1.15

Bilateral amplitude,mm

6

6

6

6

Vibration frequency,Hz

24.3

24.3

24.3

24.3

Vibration strength

7.2 g

7.2 g

7.2 g

7.2 g

Capacity

42 l/s

35 l/s

30 l/s

26 l/s

Angle adjustment range

-2°~+6°

-2°~+6°

-2°~+6°

-2°~+6°

Overall dimensions,mm

3140×1980×1540

2710×1980×1540

2710×1870×1535

2300×1980×1285

Weight,kg

2120

2080

1950

1650

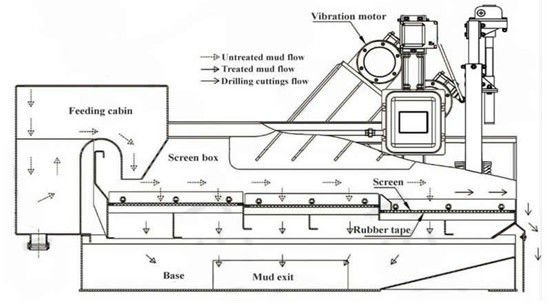

4.Working principle drawing:
