API 16A shaffers Spherical Packing element for annular BOP

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    US $9000.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
DYQX
Model Number:
DYQX
Type:
Bop
Machine Type:
Drilling Equipment
Certification:
API
Material:
Carbon Steel
Processing Type:
Casting
Use:
Well Drilling
Supply Ability
Supply Ability:
2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden case
Port
Qingdao
Lead Time :
Shipped in 20 days after payment
Product Description

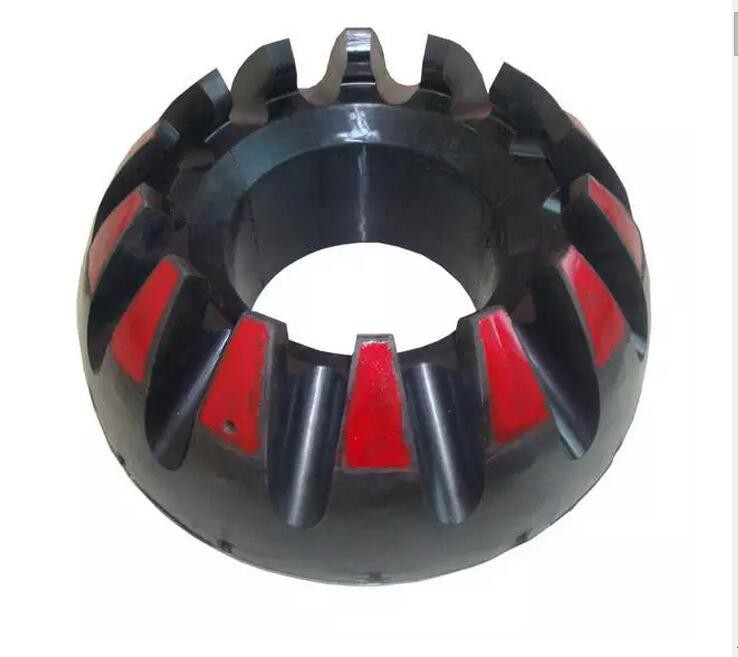

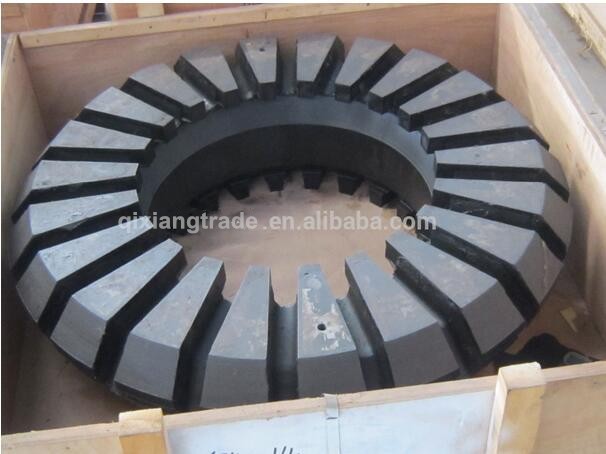

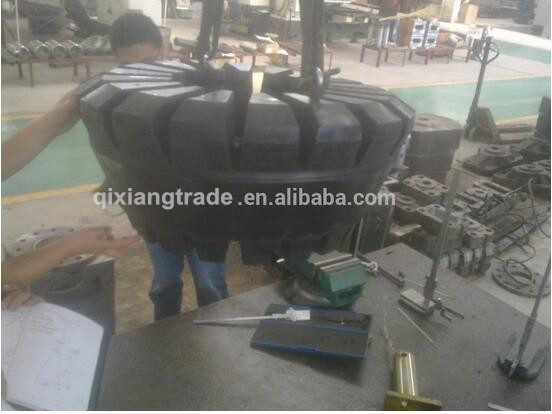

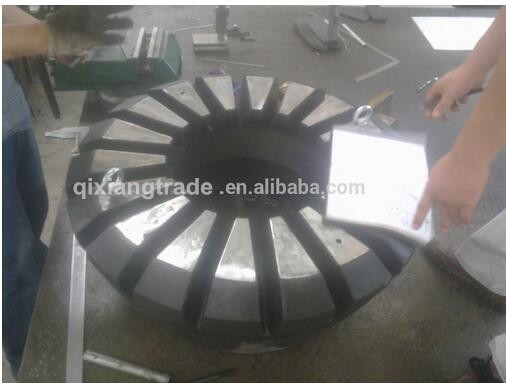

Spherical Packing unit



Main technical parameters: Bore: 11"(350mm) Working pressure: 5000psi(35Mpa)



Characters:

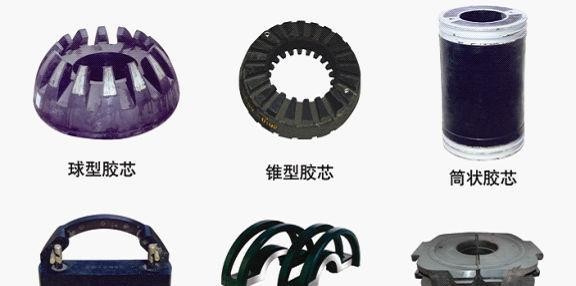

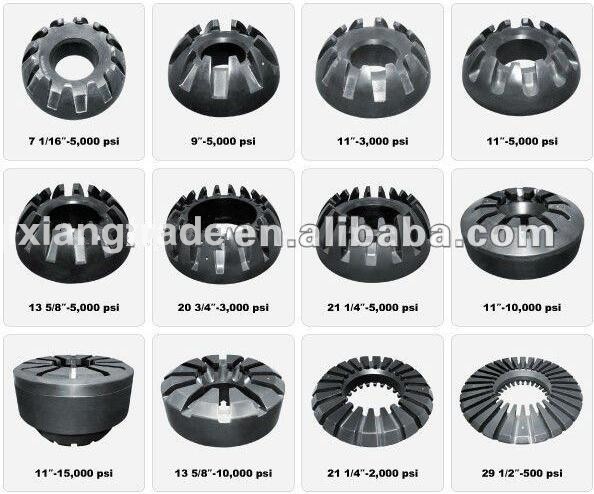

In the structure, it is divided into annular blowout preventer with spherical plastic core, annular blowout preventer with cone-shaped plastic core, and blowout preventer with tube-shaped plastic core. Annular BOP top cap and housing are connected by bolts or claw blocks.

Blowout preventer with spherical plastic core and dust-proof ring.

Performance characteristics: reasonable structure, easy operation, long life of plastic core, adapt to a wide range, capable to seal pipe string with nominal paths from 0-DN in ans shapes, better performance by combining with ran blowout preventer in the use.



Working Principle

When wells must be sealed in case of kicks high pressure (10.5Mpa) oil from control systems enters into close-cavity under piston from housing oil outlet, to promote plastic core moving upward along ball surface, so that bearing tendons move closer to each other to moce the rubber between them to the center of wellhead so as to seal drilling tools or fully seal wellhead. In opening , hydraulic pressure oul enters into open-cavity above piston from housing oul inlet, to push piston moving downwards , so that plastic will reset with its own elasticity, wellhead will be open.

ModelDimensions (mm)Weight (kg)Working temperatureRange of seal well


Model for reference:

Model

Dimensions (mm)

Weight (kg)

Working temperature

Range of seal well

FH18-21

478x215

65.2

-18~93 C

0~180

FH18-35

FH18-70

FH28-35

703x323

270

0~280

FH28-70

FH35-35

814x370

370

0~346.1
