API 16A cameron/shaffer type Single Ram BOP manual for oilfield drilling

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $100000.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
American Samoa
Brand Name:
cameron/shaffer
Model Number:
API
Type:
Bop
Machine Type:
Drilling Equipment
Certification:
API
Material:
Carbon Steel
Processing Type:
Casting
Use:
Well Drilling
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Export packaging
Port
China port
Lead Time :
Shipped in 30 days after payment
Product Description

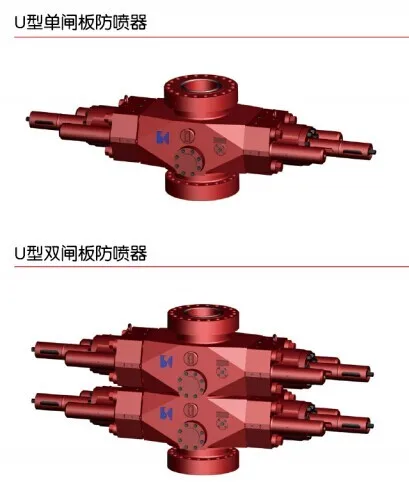

                                            API 16A cameron/shaffer  type  Single Ram BOP

Features:
1. Body and side door are made of alloy steel;
2.Use seal rings assembly to improve sealing of side door;
3. Use floating type ram. Front ram rubber is separated from top ram rubber, making it more reliable in sealing and easier to change;
4. Use buried oil way inside body. Loading hinge is separated from hydraulic hinge;
5. Compact hinge structure makes it easy to assemble and disassemble;
6. Use arc-shaped body chamber with four round corners as transition section to reduce stress peak value whenever bearing the pressure;
7. Ram cavity can be fitted with ram assembly of same type BOP made abroad;
8.Flange grooves are stainless steel lined.



Ram BOP Technical Parameter:





Ram BOP

Model

Bore (in)

Working Pressure (Psi)

Hydraulic Control Pressure (Psi)

Piston Size (in)

Piston Stroke (in)

Working Temperature (F)

2FZ18-21

7-1/16"

3000

1200-1500

5.9

4.1

-4F--186"F

2PZ18-35

7-1/16"

5000

5.9

4.1

2FZ23-21

9"

3000

5.9

5.9

2FZ23-35

9"

5000

8.6

5.9

2FZ23-70

9"

10000

9.8

5.9

2FZ28-35

11"

5000

9.8

6.3

2FZ28-70

11"

10000

9.8

6.3

2FZ28-105

11"

15000

13.7

7.1

2FZ35-14

13-5/8"

2000

6.3

7.1

2F235-21

13-5/8"

3000

8.7

7.1

2F235-35

13-5/8"

5000

13.7

7.1

2FZ35-70

13-5/8"

10000

13.7

8.2

2FZ35-105

13-5/8"

15000

13.7

8.2
