Dissolvable Frac Plug

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $3500.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
DYQXpetro
Model Number:
Models
Type:
drill string
Machine Type:
Drilling Tool
Certification:
API
Material:
Carbon Steel
Processing Type:
Forging
Use:
Well Drilling
Application:
shale gas exploration, horizontal well and high deviated well
working temperature:
60/80/100/120/150℃
OD:
95mm - 146mm
working pressure:
70Mpa/10,000psi
material:
soluble material, polymer degradable material,high strength ceramic
type:
downhole tool, dissolvable bridge plug
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Exporting Packing
Port
CHina port
Lead Time :
With 30 days
Company Information

 Dongying Qixiang Import & Export Co.,LTD(DYQX Petro company) follow the principle of "quality first, science and technology innovated, people oriented",, it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).



Our Service Objective:  People-O riented, Quality firstly and Best service.



Welcome to Visit DYQX petro.



Product Description

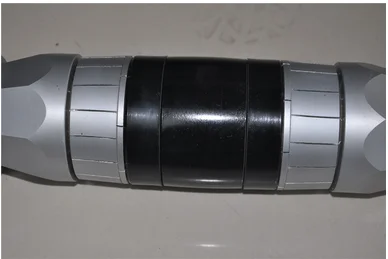

Water solubility dissolvable frac plug is a total new block-off downhole tool developed from conventional bridge plug. It organically mixes the patent soluble material, polymer degradable material and high strength ceramic technology, thus gets an outstanding performance of mechanism, solubility and degradation for the multi-staged fracture operation in the oil and gas well.

The body of dissolvable frac plug applies miscellaneous soluble metal materials, as well as that the rubber applies polymer degradable material; The dissolvable packer has 70Mpa pressure strength. According to different working condition, the dissolvable packer has tailored formula for different solubility time in order that releasing the reservoir block of horizontal well and highly deviated well automatically.

WINGOIL has developed four series dissolvable bridge plugs upon working temperature (60-80℃,80-100℃,100-120℃,120-150℃), the outer diameter of bridge plug is from 95mm to 146mm. All models are testified in oil and gas well operation with 100% success rate.



Characteristics

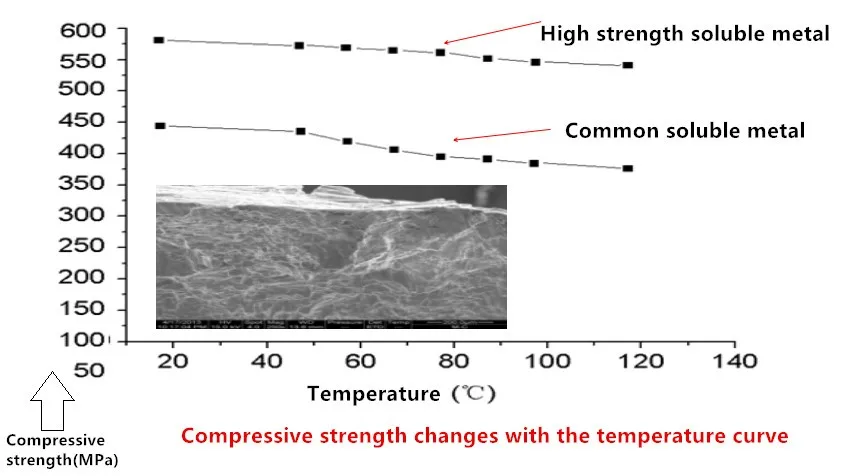

- Made of compound high strength soluble metals, guarantee the material strength under high temperature.
- Customized formula and the solubility time is flexible.
- Special high strength compound slips(max. Strength 1250Mpa), it is stable to long 15 days.
- Special cracking technology
- Good compatibility and inheritance, unnecessary to change existing strings structure, no risks resulted from drilling out and reduce the damage of casings.
