API KHT9625 hydraulic casing power tong

FOB Reference Price:Get Latest Price
US $2,000-2,001 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Power Tong, Drill pipe
Place of Origin:
China (Mainland)
Brand Name:
DYQX
Model Number:
DYQX
Machine Type:
Drilling Tool
Certification:
API
Material:
Carbon Steel
Processing Type:
Forging
Use:
Well Drilling
Supply Ability
Supply Ability:
2000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standard export package or as your request
Port
Any Port in China
Lead Time :
Shipped in 30 days after payment
Company Information

 Dongying Qixiang Import & Export Co.,LTD(DYQX Petro company) follow the principle of "quality first, science and technology innovated, people oriented",, it benefits from the convenient running, high efficiency, swift reaction, experienced experts and the advanced management. In a meanwhile, it has about 50 sub-contractors to cooperate all over the country, and it always sticks to good faith, strictness, specialty, innovation, also satisfactory service.our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions).



Our Service Objective:  People-O riented, Quality firstly and Best service.



Welcome to Visit DYQX petro.



FAQ

Dongying Qixiang Import&Export Co.,Ltd

Address:North 2nd Road,Number 352,Dongying Zone, Dongying City, Shandong province, China.



Skype:eve.liu06211988

Mobile:0086-18554639639

whatsnap:0086-18554639639

 Web: www.dyqx-petro.com  &  http://qixiangpetre.en.alibaba.com



KHT9625 Hydraulic Casing Power Tong

Product Description



Description:

KHT9625 Casing Power Tong is used to make up and break out for casing operation in oil fields. It has greatly reduced the labor of worker, enhanced connection quality of thread and diminished accidents in inappropriate casing operation.



Features:

1,Opening type, convenient and prompt to enter and slide off the working position, with an integral tong head of great strength and rigidity.

2,Master,backup tong are all use three-jaw clamp system, ensure the minimum damage to the tube pillar.

3,Four gear speed used,wide range of speed adjustment,rated torque high

4,Brake belt assembly, easy to operate and convenient to maintain and replace.

5,Open gear supporting structure, improving the strength and rigidity.

6,The jaws are cast with precise technology, artistic and strong.

7,With optional torque control system to display, record and control the make-up torque.



Parameters:



Model

KHT9625

Application range

27/8"-95/8"

High Gear Torque

3600N.m @ 14MPa/2700ft-lbs @2000psi

Low Gear Torque

34000N.m @ 14MPa/25000ft-lbs @2000psi

High Gear rpm

65r/min

Low Gear rpm

6.5r/min

Oil Flow

150 L/min/40 gpm

Dimension: L x W x H

1500x 790 x 1045 mm

Weight(including Backup Tong)

800kg/1760lbs

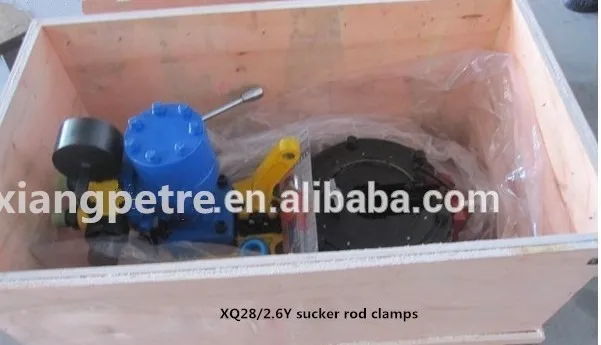

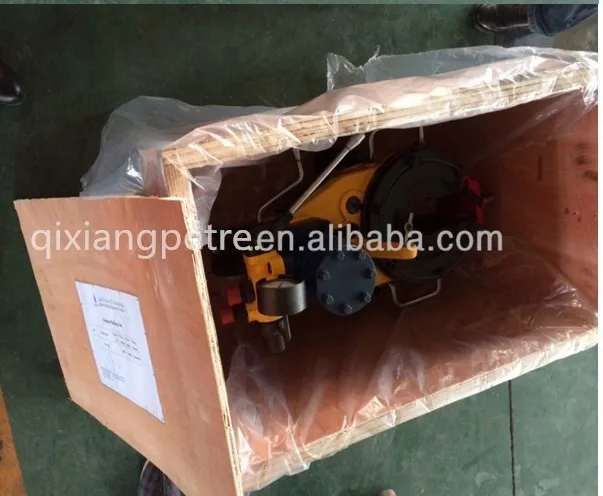

4. Packing and Shipping
